Benchmark Notebook Results¶
Executed outputs from benchmark notebooks in notebooks/benchmarks/. These compare QML workflows with classical baselines using deterministic seeds, confidence intervals, paired deltas, runtime summaries, and finite-shot sweeps.
Environment¶
- Generated: stable
- Git commit:
stable - Python:
3.12.1 - Package version:
0.2.14 - Matplotlib backend:
Agg
Summary¶
Classification Model Benchmark¶
Notebook: notebooks/benchmarks/01-classification-model-benchmark.ipynb
Result block 1:

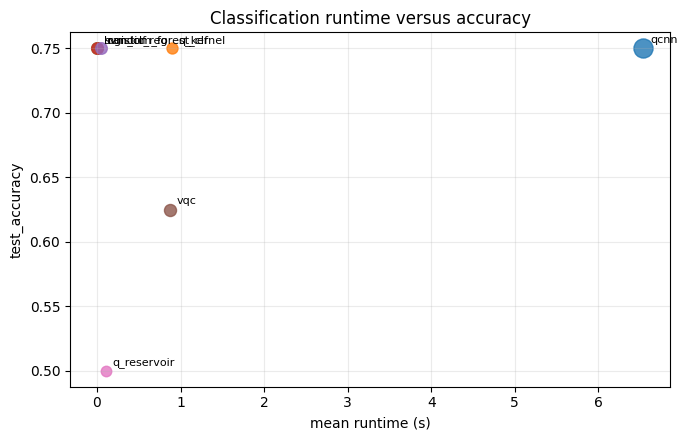

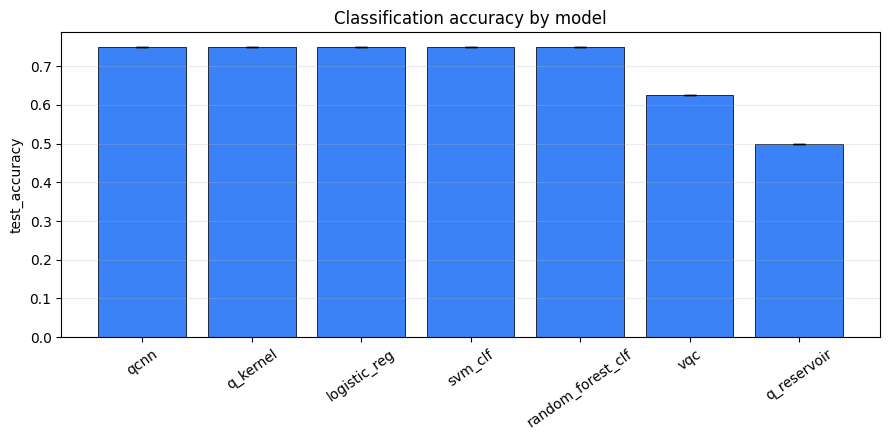

Classification summary
+--------------------------+---------------+----------+-----------+----------+------------+--------+-------+------+
| model | test_accuracy | ci95_low | ci95_high | gap | runtime_s | params | depth | runs |
+--------------------------+---------------+----------+-----------+----------+------------+--------+-------+------+
| qcnn | 0.75 | 0.75 | 0.75 | 0.125 | 6.53325 | 38 | 24 | 1 |
| quantum_kernel | 0.75 | 0.75 | 0.75 | 0.166667 | 0.892866 | 0 | 3 | 1 |
| logistic_regression | 0.75 | 0.75 | 0.75 | 0.166667 | 0.00552011 | | | 1 |
| svm_classifier | 0.75 | 0.75 | 0.75 | 0.166667 | 0.0045726 | | | 1 |
| random_forest_classifier | 0.75 | 0.75 | 0.75 | 0.25 | 0.0452248 | | | 1 |
| vqc | 0.625 | 0.625 | 0.625 | 0 | 0.869101 | 4 | 5 | 1 |
| quantum_reservoir | 0.5 | 0.5 | 0.5 | 0.125 | 0.107451 | 0 | 2 | 1 |
+--------------------------+---------------+----------+-----------+----------+------------+--------+-------+------+
Paired deltas vs logistic_regression
+--------------------------+------------+------+--------+------+-------+
| model | mean_delta | wins | losses | ties | pairs |
+--------------------------+------------+------+--------+------+-------+
| vqc | -0.125 | 0 | 1 | 0 | 1 |
| qcnn | 0 | 0 | 0 | 1 | 1 |
| quantum_kernel | 0 | 0 | 0 | 1 | 1 |
| quantum_reservoir | -0.25 | 0 | 1 | 0 | 1 |
| logistic_regression | 0 | 0 | 0 | 1 | 1 |
| svm_classifier | 0 | 0 | 0 | 1 | 1 |
| random_forest_classifier | 0 | 0 | 0 | 1 | 1 |
+--------------------------+------------+------+--------+------+-------+
Best model
+------------------+---------------+
| Metric | Value |
+------------------+---------------+
| model | qcnn |
| metric | test_accuracy |
| value | 0.75 |
| higher_is_better | True |
+------------------+---------------+
Result block 2:

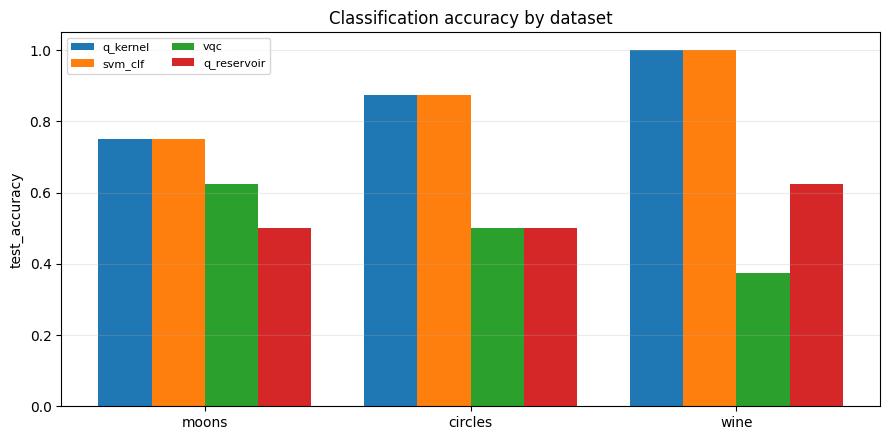

Classification dataset sweep
+---------+-------------------+---------------+----------+-----------+------------+------------+--------+-------+------+
| dataset | model | test_accuracy | ci95_low | ci95_high | gap | runtime_s | params | depth | runs |
+---------+-------------------+---------------+----------+-----------+------------+------------+--------+-------+------+
| moons | quantum_kernel | 0.75 | 0.75 | 0.75 | 0.166667 | 0.931716 | 0 | 3 | 1 |
| moons | svm_classifier | 0.75 | 0.75 | 0.75 | 0.166667 | 0.00765863 | | | 1 |
| moons | vqc | 0.625 | 0.625 | 0.625 | 0 | 0.679553 | 4 | 5 | 1 |
| moons | quantum_reservoir | 0.5 | 0.5 | 0.5 | 0.125 | 0.138952 | 0 | 2 | 1 |
| circles | quantum_kernel | 0.875 | 0.875 | 0.875 | 0.125 | 0.830495 | 0 | 3 | 1 |
| circles | svm_classifier | 0.875 | 0.875 | 0.875 | 0.125 | 0.00504418 | | | 1 |
| circles | vqc | 0.5 | 0.5 | 0.5 | -0.208333 | 0.759714 | 4 | 5 | 1 |
| circles | quantum_reservoir | 0.5 | 0.5 | 0.5 | 0.291667 | 0.170294 | 0 | 2 | 1 |
| wine | quantum_kernel | 1 | 1 | 1 | -0.0416667 | 0.923827 | 0 | 3 | 1 |
| wine | svm_classifier | 1 | 1 | 1 | -0.0416667 | 0.0130524 | | | 1 |
| wine | quantum_reservoir | 0.625 | 0.625 | 0.625 | 0.0833333 | 0.134928 | 0 | 2 | 1 |
| wine | vqc | 0.375 | 0.375 | 0.375 | 0.125 | 0.982362 | 4 | 5 | 1 |
+---------+-------------------+---------------+----------+-----------+------------+------------+--------+-------+------+
Regression Model Benchmark¶
Notebook: notebooks/benchmarks/02-regression-model-benchmark.ipynb
Result block 1:

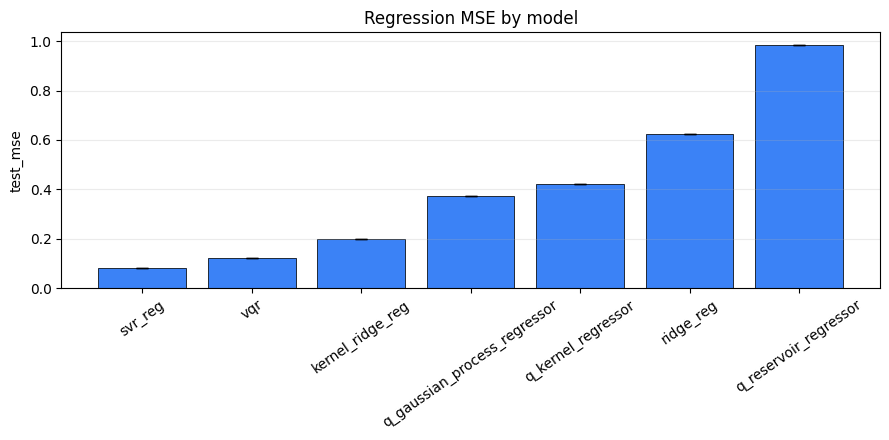

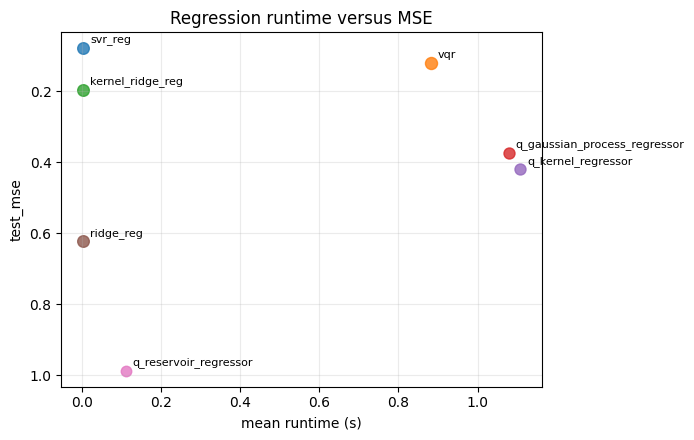

Regression summary by MSE
+------------------------------------+-----------+-----------+-----------+------------+------------+--------+-------+------+
| model | test_mse | ci95_low | ci95_high | gap | runtime_s | params | depth | runs |
+------------------------------------+-----------+-----------+-----------+------------+------------+--------+-------+------+
| svr_regression | 0.0801907 | 0.0801907 | 0.0801907 | -0.0136897 | 0.00275484 | | | 1 |
| vqr | 0.122342 | 0.122342 | 0.122342 | -0.773642 | 0.881965 | 4 | 5 | 1 |
| kernel_ridge_regression | 0.197459 | 0.197459 | 0.197459 | 0.0338305 | 0.00322244 | | | 1 |
| quantum_gaussian_process_regressor | 0.373078 | 0.373078 | 0.373078 | 0.11375 | 1.07821 | 0 | 3 | 1 |
| quantum_kernel_regressor | 0.419824 | 0.419824 | 0.419824 | 0.0973739 | 1.1084 | 0 | 3 | 1 |
| ridge_regression | 0.622718 | 0.622718 | 0.622718 | 0.121189 | 0.00295959 | | | 1 |
| quantum_reservoir_regressor | 0.986287 | 0.986287 | 0.986287 | 0.0713367 | 0.110311 | 0 | 2 | 1 |
+------------------------------------+-----------+-----------+-----------+------------+------------+--------+-------+------+
Regression summary by MAE
+------------------------------------+----------+----------+-----------+------------+------------+--------+-------+------+
| model | test_mae | ci95_low | ci95_high | gap | runtime_s | params | depth | runs |
+------------------------------------+----------+----------+-----------+------------+------------+--------+-------+------+
| svr_regression | 0.230482 | 0.230482 | 0.230482 | -0.0136897 | 0.00275484 | | | 1 |
| vqr | 0.300124 | 0.300124 | 0.300124 | -0.773642 | 0.881965 | 4 | 5 | 1 |
| kernel_ridge_regression | 0.408842 | 0.408842 | 0.408842 | 0.0338305 | 0.00322244 | | | 1 |
| quantum_gaussian_process_regressor | 0.562695 | 0.562695 | 0.562695 | 0.11375 | 1.07821 | 0 | 3 | 1 |
| quantum_kernel_regressor | 0.60704 | 0.60704 | 0.60704 | 0.0973739 | 1.1084 | 0 | 3 | 1 |
| ridge_regression | 0.705256 | 0.705256 | 0.705256 | 0.121189 | 0.00295959 | | | 1 |
| quantum_reservoir_regressor | 0.837164 | 0.837164 | 0.837164 | 0.0713367 | 0.110311 | 0 | 2 | 1 |
+------------------------------------+----------+----------+-----------+------------+------------+--------+-------+------+
Paired MSE deltas vs svr_regression
+------------------------------------+------------+------+--------+------+-------+
| model | mean_delta | wins | losses | ties | pairs |
+------------------------------------+------------+------+--------+------+-------+
| vqr | 0.0421516 | 0 | 1 | 0 | 1 |
| quantum_kernel_regressor | 0.339634 | 0 | 1 | 0 | 1 |
| quantum_gaussian_process_regressor | 0.292887 | 0 | 1 | 0 | 1 |
| quantum_reservoir_regressor | 0.906096 | 0 | 1 | 0 | 1 |
| ridge_regression | 0.542528 | 0 | 1 | 0 | 1 |
| kernel_ridge_regression | 0.117269 | 0 | 1 | 0 | 1 |
| svr_regression | 0 | 0 | 0 | 1 | 1 |
+------------------------------------+------------+------+--------+------+-------+
Best model
+------------------+----------------+
| Metric | Value |
+------------------+----------------+
| model | svr_regression |
| metric | test_mse |
| value | 0.0801907 |
| higher_is_better | False |
+------------------+----------------+
Result block 2:

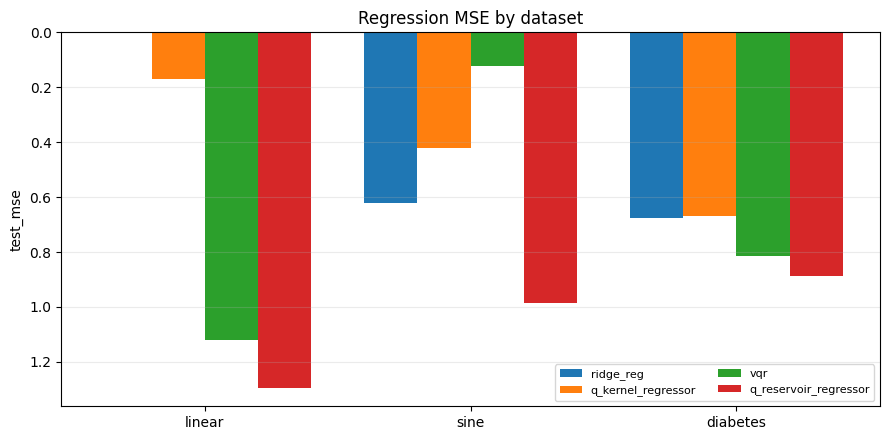

Regression dataset sweep
+----------+-----------------------------+------------+------------+------------+------------+------------+--------+-------+------+
| dataset | model | test_mse | ci95_low | ci95_high | gap | runtime_s | params | depth | runs |
+----------+-----------------------------+------------+------------+------------+------------+------------+--------+-------+------+
| linear | ridge_regression | 0.00322048 | 0.00322048 | 0.00322048 | 0.00141887 | 0.00445475 | | | 1 |
| linear | quantum_kernel_regressor | 0.168163 | 0.168163 | 0.168163 | -0.0173032 | 0.778108 | 0 | 3 | 1 |
| linear | vqr | 1.12147 | 1.12147 | 1.12147 | 0.0589046 | 1.21235 | 4 | 5 | 1 |
| linear | quantum_reservoir_regressor | 1.29671 | 1.29671 | 1.29671 | 0.325749 | 0.107004 | 0 | 2 | 1 |
| sine | vqr | 0.122342 | 0.122342 | 0.122342 | -0.773642 | 0.897557 | 4 | 5 | 1 |
| sine | quantum_kernel_regressor | 0.419824 | 0.419824 | 0.419824 | 0.0973739 | 1.02513 | 0 | 3 | 1 |
| sine | ridge_regression | 0.622718 | 0.622718 | 0.622718 | 0.121189 | 0.00439305 | | | 1 |
| sine | quantum_reservoir_regressor | 0.986287 | 0.986287 | 0.986287 | 0.0713367 | 0.0975136 | 0 | 2 | 1 |
| diabetes | quantum_kernel_regressor | 0.667531 | 0.667531 | 0.667531 | 0.0185848 | 0.790349 | 0 | 3 | 1 |
| diabetes | ridge_regression | 0.677572 | 0.677572 | 0.677572 | -0.145698 | 0.00666374 | | | 1 |
| diabetes | vqr | 0.816185 | 0.816185 | 0.816185 | -0.726353 | 0.985049 | 4 | 5 | 1 |
| diabetes | quantum_reservoir_regressor | 0.886238 | 0.886238 | 0.886238 | 0.0638437 | 0.196492 | 0 | 2 | 1 |
+----------+-----------------------------+------------+------------+------------+------------+------------+--------+-------+------+
Quantum Kernel Family Benchmark¶
Notebook: notebooks/benchmarks/03-quantum-kernel-family-benchmark.ipynb
Result block 1:

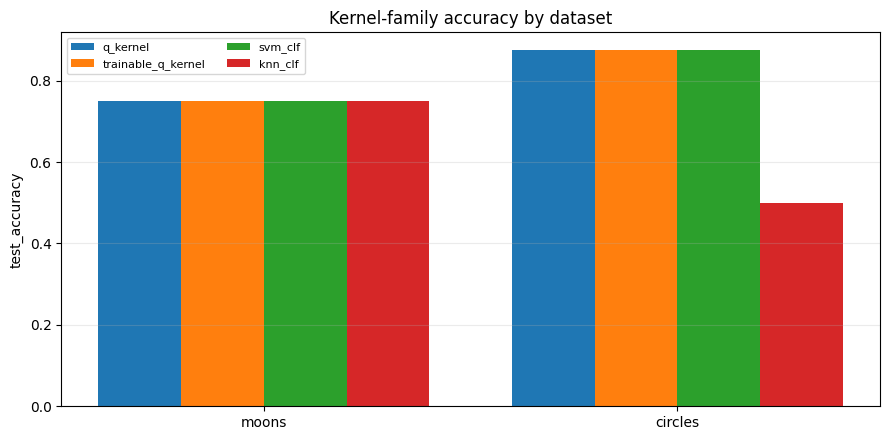

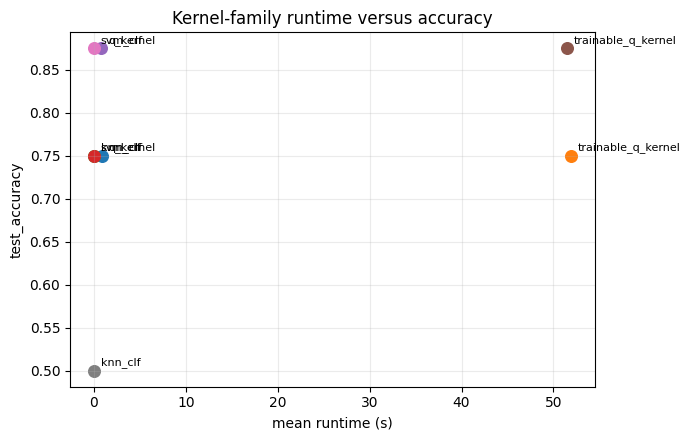

Kernel-family benchmark summary
+---------+--------------------------+---------------+----------+-----------+----------+------------+
| dataset | model | test_accuracy | ci95_low | ci95_high | gap | runtime_s |
+---------+--------------------------+---------------+----------+-----------+----------+------------+
| moons | quantum_kernel | 0.75 | 0.75 | 0.75 | 0.166667 | 0.863331 |
| moons | trainable_quantum_kernel | 0.75 | 0.75 | 0.75 | 0.166667 | 51.9044 |
| moons | svm_classifier | 0.75 | 0.75 | 0.75 | 0.166667 | 0.00341541 |
| moons | knn_classifier | 0.75 | 0.75 | 0.75 | 0.208333 | 0.00571792 |
| circles | quantum_kernel | 0.875 | 0.875 | 0.875 | 0.125 | 0.831367 |
| circles | trainable_quantum_kernel | 0.875 | 0.875 | 0.875 | 0.125 | 51.4472 |
| circles | svm_classifier | 0.875 | 0.875 | 0.875 | 0.125 | 0.00477611 |
| circles | knn_classifier | 0.5 | 0.5 | 0.5 | 0.166667 | 0.00516245 |
+---------+--------------------------+---------------+----------+-----------+----------+------------+
Paired deltas vs best classical kernel-style baseline
+---------+----------------+--------------------------+------------+------+--------+-------+
| dataset | reference | model | mean_delta | wins | losses | pairs |
+---------+----------------+--------------------------+------------+------+--------+-------+
| moons | svm_classifier | quantum_kernel | 0 | 0 | 0 | 1 |
| moons | svm_classifier | trainable_quantum_kernel | 0 | 0 | 0 | 1 |
| moons | svm_classifier | svm_classifier | 0 | 0 | 0 | 1 |
| moons | svm_classifier | knn_classifier | 0 | 0 | 0 | 1 |
| circles | svm_classifier | quantum_kernel | 0 | 0 | 0 | 1 |
| circles | svm_classifier | trainable_quantum_kernel | 0 | 0 | 0 | 1 |
| circles | svm_classifier | svm_classifier | 0 | 0 | 0 | 1 |
| circles | svm_classifier | knn_classifier | -0.375 | 0 | 1 | 1 |
+---------+----------------+--------------------------+------------+------+--------+-------+
Result block 2:
Trainable quantum kernel diagnostics: moons
+---------+------+---------------+-----------------+-----------+
| dataset | seed | test_accuracy | final_alignment | runtime_s |
+---------+------+---------------+-----------------+-----------+
| moons | 0 | 0.75 | 0.32394 | 51.9044 |
+---------+------+---------------+-----------------+-----------+
Trainable quantum kernel diagnostics: circles
+---------+------+---------------+-----------------+-----------+
| dataset | seed | test_accuracy | final_alignment | runtime_s |
+---------+------+---------------+-----------------+-----------+
| circles | 0 | 0.875 | 0.133107 | 51.4472 |
+---------+------+---------------+-----------------+-----------+
Variational Model Capacity Benchmark¶
Notebook: notebooks/benchmarks/04-variational-model-capacity-benchmark.ipynb
Result block 1:

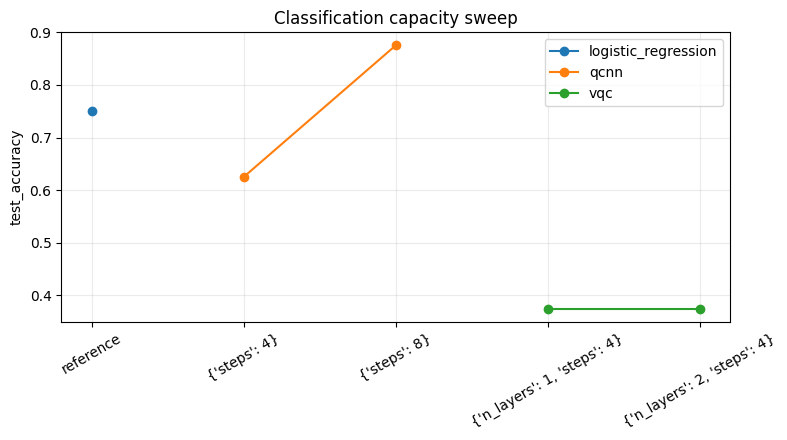

Classification capacity summary
+---------------------+-----------------------------+---------------+-----------+------+
| model | capacity | test_accuracy | runtime_s | runs |
+---------------------+-----------------------------+---------------+-----------+------+
| qcnn | {'steps': 8} | 0.875 | 10.8415 | 1 |
| logistic_regression | reference | 0.75 | 0.012237 | 1 |
| qcnn | {'steps': 4} | 0.625 | 5.71036 | 1 |
| vqc | {'n_layers': 1, 'steps': 4} | 0.375 | 0.756289 | 1 |
| vqc | {'n_layers': 2, 'steps': 4} | 0.375 | 1.50935 | 1 |
+---------------------+-----------------------------+---------------+-----------+------+
Result block 2:

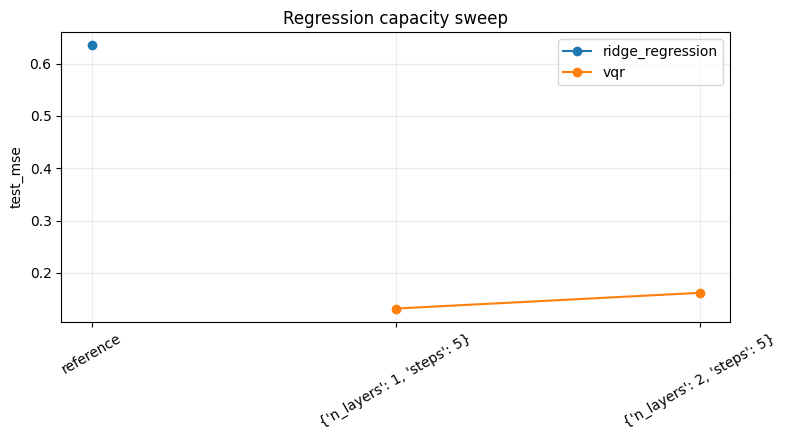

Regression capacity summary
+------------------+-----------------------------+----------+----------+------------+------+
| model | capacity | test_mse | test_mae | runtime_s | runs |
+------------------+-----------------------------+----------+----------+------------+------+
| vqr | {'n_layers': 1, 'steps': 5} | 0.131641 | 0.307639 | 0.732672 | 1 |
| vqr | {'n_layers': 2, 'steps': 5} | 0.161685 | 0.370644 | 1.542 | 1 |
| ridge_regression | reference | 0.634695 | 0.70884 | 0.00462633 | 1 |
+------------------+-----------------------------+----------+----------+------------+------+
Finite-Shot Benchmark¶
Notebook: notebooks/benchmarks/05-finite-shot-benchmark.ipynb
Result block 1:

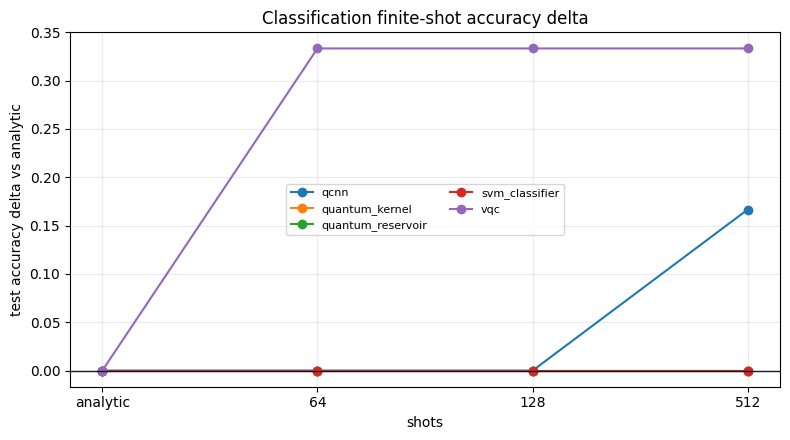

Classification finite-shot summary
+----------+-------------------+---------------+----------+-----------+--------------------+------------+----------------------------+
| shots | model | test_accuracy | ci95_low | ci95_high | generalization_gap | runtime_s | accuracy_delta_vs_analytic |
+----------+-------------------+---------------+----------+-----------+--------------------+------------+----------------------------+
| analytic | vqc | 0.166667 | 0.166667 | 0.166667 | 0.222222 | 0.773331 | 0 |
| analytic | qcnn | 0.833333 | 0.833333 | 0.833333 | -0.111111 | 4.33888 | 0 |
| analytic | quantum_kernel | 0.833333 | 0.833333 | 0.833333 | -0.0555556 | 0.477389 | 0 |
| analytic | quantum_reservoir | 0.333333 | 0.333333 | 0.333333 | 0.444444 | 0.0839278 | 0 |
| analytic | svm_classifier | 1 | 1 | 1 | -0.166667 | 0.00424588 | 0 |
| 64 | vqc | 0.5 | 0.5 | 0.5 | 0.166667 | 1.56435 | 0.333333 |
| 64 | qcnn | 0.833333 | 0.833333 | 0.833333 | -0.277778 | 48.7621 | 0 |
| 64 | quantum_kernel | 0.833333 | 0.833333 | 0.833333 | -0.0555556 | 0.73402 | 0 |
| 64 | quantum_reservoir | 0.333333 | 0.333333 | 0.333333 | 0.388889 | 0.126997 | 0 |
| 64 | svm_classifier | 1 | 1 | 1 | -0.166667 | 0.00407665 | 0 |
| 128 | vqc | 0.5 | 0.5 | 0.5 | 0.166667 | 1.36173 | 0.333333 |
| 128 | qcnn | 0.833333 | 0.833333 | 0.833333 | -0.277778 | 48.6335 | 0 |
| 128 | quantum_kernel | 0.833333 | 0.833333 | 0.833333 | -0.0555556 | 0.701925 | 0 |
| 128 | quantum_reservoir | 0.333333 | 0.333333 | 0.333333 | 0.444444 | 0.128213 | 0 |
| 128 | svm_classifier | 1 | 1 | 1 | -0.166667 | 0.00432783 | 0 |
| 512 | vqc | 0.5 | 0.5 | 0.5 | 0.222222 | 1.21103 | 0.333333 |
| 512 | qcnn | 1 | 1 | 1 | -0.277778 | 49.9567 | 0.166667 |
| 512 | quantum_kernel | 0.833333 | 0.833333 | 0.833333 | -0.0555556 | 0.631688 | 0 |
| 512 | quantum_reservoir | 0.333333 | 0.333333 | 0.333333 | 0.388889 | 0.18658 | 0 |
| 512 | svm_classifier | 1 | 1 | 1 | -0.166667 | 0.00436783 | 0 |
+----------+-------------------+---------------+----------+-----------+--------------------+------------+----------------------------+
Result block 2:

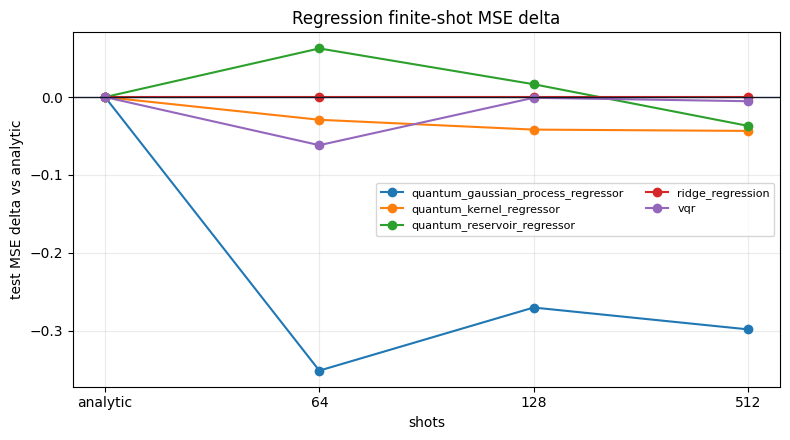

Regression finite-shot summary
+----------+------------------------------------+----------+----------+-----------+--------------------+------------+-----------------------+
| shots | model | test_mse | ci95_low | ci95_high | generalization_gap | runtime_s | mse_delta_vs_analytic |
+----------+------------------------------------+----------+----------+-----------+--------------------+------------+-----------------------+
| analytic | vqr | 0.665687 | 0.665687 | 0.665687 | -0.0945696 | 0.688634 | 0 |
| analytic | quantum_kernel_regressor | 0.618937 | 0.618937 | 0.618937 | 0.39149 | 0.474838 | 0 |
| analytic | quantum_gaussian_process_regressor | 1.13144 | 1.13144 | 1.13144 | 1.06286 | 0.496159 | 0 |
| analytic | quantum_reservoir_regressor | 0.982325 | 0.982325 | 0.982325 | 0.100131 | 0.150744 | 0 |
| analytic | ridge_regression | 0.65928 | 0.65928 | 0.65928 | 0.345539 | 0.00317971 | 0 |
| 64 | vqr | 0.603867 | 0.603867 | 0.603867 | -0.122759 | 1.55517 | -0.0618199 |
| 64 | quantum_kernel_regressor | 0.58976 | 0.58976 | 0.58976 | 0.368003 | 0.654571 | -0.0291769 |
| 64 | quantum_gaussian_process_regressor | 0.78001 | 0.78001 | 0.78001 | 0.646353 | 0.633054 | -0.35143 |
| 64 | quantum_reservoir_regressor | 1.04479 | 1.04479 | 1.04479 | 0.177314 | 0.115762 | 0.0624619 |
| 64 | ridge_regression | 0.65928 | 0.65928 | 0.65928 | 0.345539 | 0.00259913 | 0 |
| 128 | vqr | 0.664742 | 0.664742 | 0.664742 | -0.0626584 | 1.63253 | -0.000945064 |
| 128 | quantum_kernel_regressor | 0.577133 | 0.577133 | 0.577133 | 0.379557 | 0.676923 | -0.0418044 |
| 128 | quantum_gaussian_process_regressor | 0.861045 | 0.861045 | 0.861045 | 0.816126 | 0.69549 | -0.270395 |
| 128 | quantum_reservoir_regressor | 0.998827 | 0.998827 | 0.998827 | 0.119465 | 0.118647 | 0.016502 |
| 128 | ridge_regression | 0.65928 | 0.65928 | 0.65928 | 0.345539 | 0.00417196 | 0 |
| 512 | vqr | 0.66036 | 0.66036 | 0.66036 | -0.0898559 | 1.52294 | -0.00532629 |
| 512 | quantum_kernel_regressor | 0.575466 | 0.575466 | 0.575466 | 0.374851 | 0.678763 | -0.0434711 |
| 512 | quantum_gaussian_process_regressor | 0.83301 | 0.83301 | 0.83301 | 0.771806 | 0.705678 | -0.29843 |
| 512 | quantum_reservoir_regressor | 0.945361 | 0.945361 | 0.945361 | 0.062365 | 0.114641 | -0.0369647 |
| 512 | ridge_regression | 0.65928 | 0.65928 | 0.65928 | 0.345539 | 0.00252898 | 0 |
+----------+------------------------------------+----------+----------+-----------+--------------------+------------+-----------------------+
Real-Data Small-Sample Benchmark¶
Notebook: notebooks/benchmarks/06-real-data-small-sample-benchmark.ipynb
Result block 1:

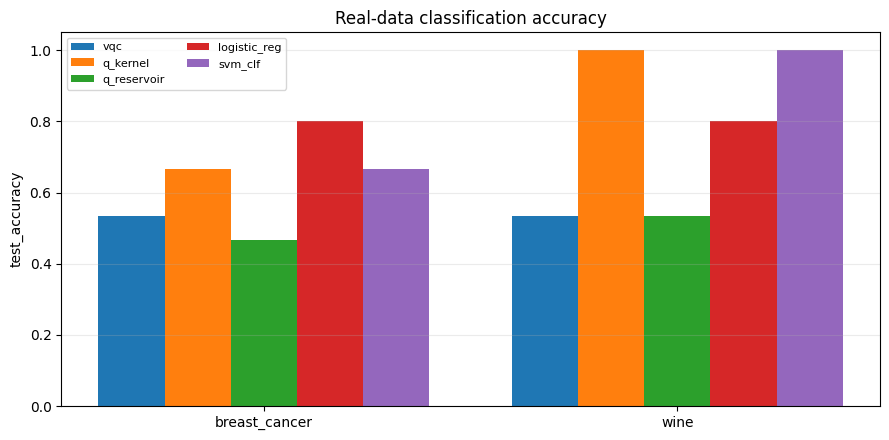

Real-data classification summary
+---------------+---------------------+---------------+----------+-----------+------------+------------+
| dataset | model | test_accuracy | ci95_low | ci95_high | gap | runtime_s |
+---------------+---------------------+---------------+----------+-----------+------------+------------+
| breast_cancer | logistic_regression | 0.8 | 0.8 | 0.8 | 0.0666667 | 0.0089817 |
| breast_cancer | quantum_kernel | 0.666667 | 0.666667 | 0.666667 | 0.2 | 3.01411 |
| breast_cancer | svm_classifier | 0.666667 | 0.666667 | 0.666667 | 0.2 | 0.0115813 |
| breast_cancer | vqc | 0.533333 | 0.533333 | 0.533333 | -0.0666667 | 1.37249 |
| breast_cancer | quantum_reservoir | 0.466667 | 0.466667 | 0.466667 | 0.177778 | 0.201987 |
| wine | quantum_kernel | 1 | 1 | 1 | -0.0888889 | 2.95942 |
| wine | svm_classifier | 1 | 1 | 1 | -0.0888889 | 0.00577888 |
| wine | logistic_regression | 0.8 | 0.8 | 0.8 | 0.0888889 | 0.00486731 |
| wine | vqc | 0.533333 | 0.533333 | 0.533333 | 0.111111 | 1.72089 |
| wine | quantum_reservoir | 0.533333 | 0.533333 | 0.533333 | 0.0222222 | 0.276563 |
+---------------+---------------------+---------------+----------+-----------+------------+------------+
Result block 2:

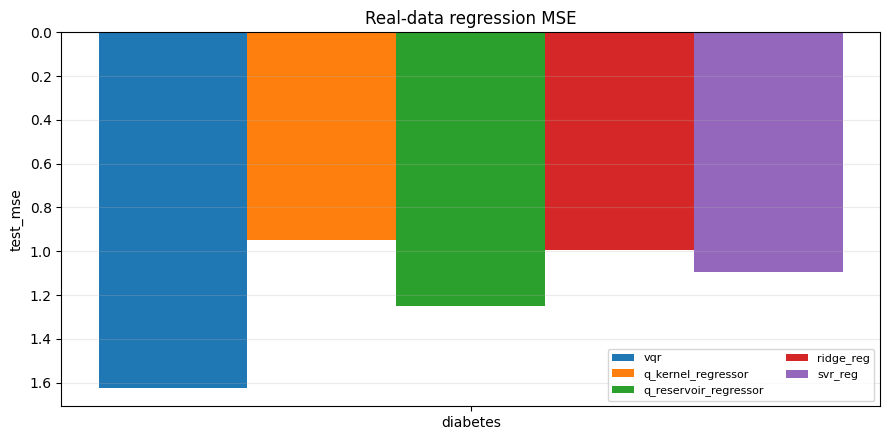

Real-data regression summary
+----------+-----------------------------+----------+----------+----------+-----------+------------+
| dataset | model | test_mse | test_mae | ci95_low | ci95_high | runtime_s |
+----------+-----------------------------+----------+----------+----------+-----------+------------+
| diabetes | quantum_kernel_regressor | 0.949192 | 0.85899 | 0.949192 | 0.949192 | 1.57759 |
| diabetes | ridge_regression | 0.992731 | 0.913113 | 0.992731 | 0.992731 | 0.00436451 |
| diabetes | svr_regression | 1.09356 | 0.963873 | 1.09356 | 1.09356 | 0.00504524 |
| diabetes | quantum_reservoir_regressor | 1.24796 | 1.03509 | 1.24796 | 1.24796 | 0.176436 |
| diabetes | vqr | 1.62663 | 1.01501 | 1.62663 | 1.62663 | 1.67081 |
+----------+-----------------------------+----------+----------+----------+-----------+------------+
Noise-Model Benchmark¶
Notebook: notebooks/benchmarks/07-noise-model-benchmark.ipynb
Result block 1:

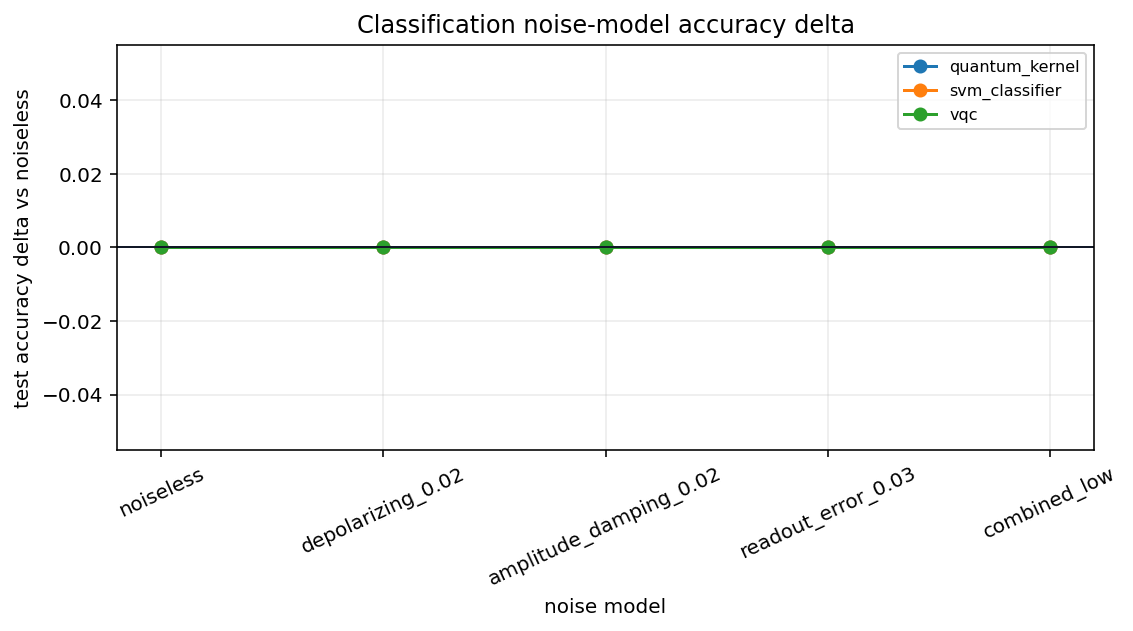

Classification noise-model summary
+------------------------+--------------------------------------------------------+----------------+---------------+----------+-----------+--------------------+------------+-----------------------------+
| noise_model | noise_tag | model | test_accuracy | ci95_low | ci95_high | generalization_gap | runtime_s | accuracy_delta_vs_noiseless |
+------------------------+--------------------------------------------------------+----------------+---------------+----------+-----------+--------------------+------------+-----------------------------+
| noiseless | noiseless | vqc | 0.6 | 0.6 | 0.6 | 0 | 0.854189 | 0 |
| noiseless | noiseless | quantum_kernel | 0.6 | 0.6 | 0.6 | 0.266667 | 0.702677 | 0 |
| noiseless | noiseless | svm_classifier | 0.8 | 0.8 | 0.8 | 0.0666667 | 0.0130219 | 0 |
| depolarizing_0.02 | depolarizing0p02 | vqc | 0.6 | 0.6 | 0.6 | 0 | 1.5845 | 0 |
| depolarizing_0.02 | depolarizing0p02 | quantum_kernel | 0.6 | 0.6 | 0.6 | 0.266667 | 1.13225 | 0 |
| depolarizing_0.02 | depolarizing0p02 | svm_classifier | 0.8 | 0.8 | 0.8 | 0.0666667 | 0.00870595 | 0 |
| amplitude_damping_0.02 | amplitudedamping0p02 | vqc | 0.6 | 0.6 | 0.6 | 0 | 1.27449 | 0 |
| amplitude_damping_0.02 | amplitudedamping0p02 | quantum_kernel | 0.6 | 0.6 | 0.6 | 0.266667 | 1.25527 | 0 |
| amplitude_damping_0.02 | amplitudedamping0p02 | svm_classifier | 0.8 | 0.8 | 0.8 | 0.0666667 | 0.00360445 | 0 |
| readout_error_0.03 | readouterror0p03 | vqc | 0.6 | 0.6 | 0.6 | 0 | 0.596281 | 0 |
| readout_error_0.03 | readouterror0p03 | quantum_kernel | 0.6 | 0.6 | 0.6 | 0.266667 | 0.840027 | 0 |
| readout_error_0.03 | readouterror0p03 | svm_classifier | 0.8 | 0.8 | 0.8 | 0.0666667 | 0.00448502 | 0 |
| combined_low | depolarizing0p01_amplitudedamping0p01_readouterror0p02 | vqc | 0.6 | 0.6 | 0.6 | 0 | 0.815886 | 0 |
| combined_low | depolarizing0p01_amplitudedamping0p01_readouterror0p02 | quantum_kernel | 0.6 | 0.6 | 0.6 | 0.266667 | 0.923056 | 0 |
| combined_low | depolarizing0p01_amplitudedamping0p01_readouterror0p02 | svm_classifier | 0.8 | 0.8 | 0.8 | 0.0666667 | 0.00458748 | 0 |
+------------------------+--------------------------------------------------------+----------------+---------------+----------+-----------+--------------------+------------+-----------------------------+
Result block 2:

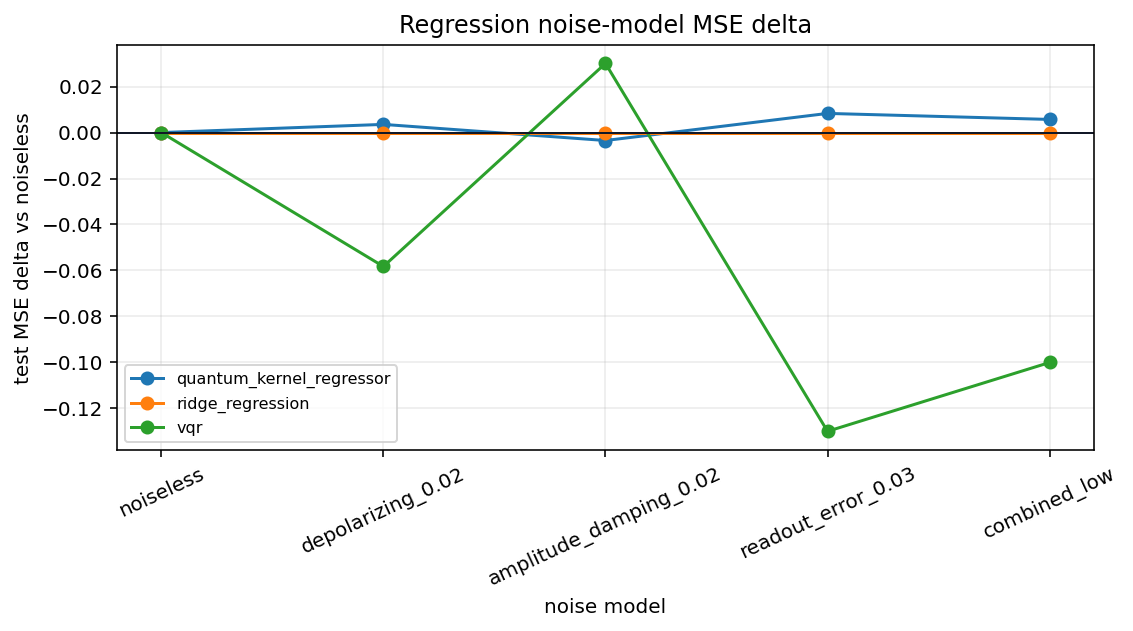

Regression noise-model summary
+------------------------+--------------------------------------------------------+--------------------------+----------+----------+-----------+--------------------+------------+------------------------+
| noise_model | noise_tag | model | test_mse | ci95_low | ci95_high | generalization_gap | runtime_s | mse_delta_vs_noiseless |
+------------------------+--------------------------------------------------------+--------------------------+----------+----------+-----------+--------------------+------------+------------------------+
| noiseless | noiseless | vqr | 5.08599 | 5.08599 | 5.08599 | 4.35799 | 0.567244 | 0 |
| noiseless | noiseless | quantum_kernel_regressor | 2.49846 | 2.49846 | 2.49846 | 2.225 | 0.391775 | 0 |
| noiseless | noiseless | ridge_regression | 2.10303 | 2.10303 | 2.10303 | 1.81081 | 0.00449462 | 0 |
| depolarizing_0.02 | depolarizing0p02 | vqr | 5.02772 | 5.02772 | 5.02772 | 4.30715 | 1.00622 | -0.0582679 |
| depolarizing_0.02 | depolarizing0p02 | quantum_kernel_regressor | 2.50201 | 2.50201 | 2.50201 | 2.22621 | 0.841362 | 0.00355135 |
| depolarizing_0.02 | depolarizing0p02 | ridge_regression | 2.10303 | 2.10303 | 2.10303 | 1.81081 | 0.00269852 | 0 |
| amplitude_damping_0.02 | amplitudedamping0p02 | vqr | 5.11607 | 5.11607 | 5.11607 | 4.37205 | 0.784504 | 0.0300832 |
| amplitude_damping_0.02 | amplitudedamping0p02 | quantum_kernel_regressor | 2.495 | 2.495 | 2.495 | 2.22125 | 0.600997 | -0.00346088 |
| amplitude_damping_0.02 | amplitudedamping0p02 | ridge_regression | 2.10303 | 2.10303 | 2.10303 | 1.81081 | 0.004028 | 0 |
| readout_error_0.03 | readouterror0p03 | vqr | 4.95601 | 4.95601 | 4.95601 | 4.24358 | 0.863779 | -0.129981 |
| readout_error_0.03 | readouterror0p03 | quantum_kernel_regressor | 2.50679 | 2.50679 | 2.50679 | 2.22785 | 0.734005 | 0.008329 |
| readout_error_0.03 | readouterror0p03 | ridge_regression | 2.10303 | 2.10303 | 2.10303 | 1.81081 | 0.00424434 | 0 |
| combined_low | depolarizing0p01_amplitudedamping0p01_readouterror0p02 | vqr | 4.98595 | 4.98595 | 4.98595 | 4.26417 | 0.889175 | -0.100039 |
| combined_low | depolarizing0p01_amplitudedamping0p01_readouterror0p02 | quantum_kernel_regressor | 2.50417 | 2.50417 | 2.50417 | 2.22575 | 1.13066 | 0.00571259 |
| combined_low | depolarizing0p01_amplitudedamping0p01_readouterror0p02 | ridge_regression | 2.10303 | 2.10303 | 2.10303 | 1.81081 | 0.00422156 | 0 |
+------------------------+--------------------------------------------------------+--------------------------+----------+----------+-----------+--------------------+------------+------------------------+
Result block 3:
Noise benchmark validation
+---------------------+-----------------+--------------+--------+
| classification_rows | regression_rows | noise_models | passed |
+---------------------+-----------------+--------------+--------+
| 15 | 15 | 5 | True |
+---------------------+-----------------+--------------+--------+

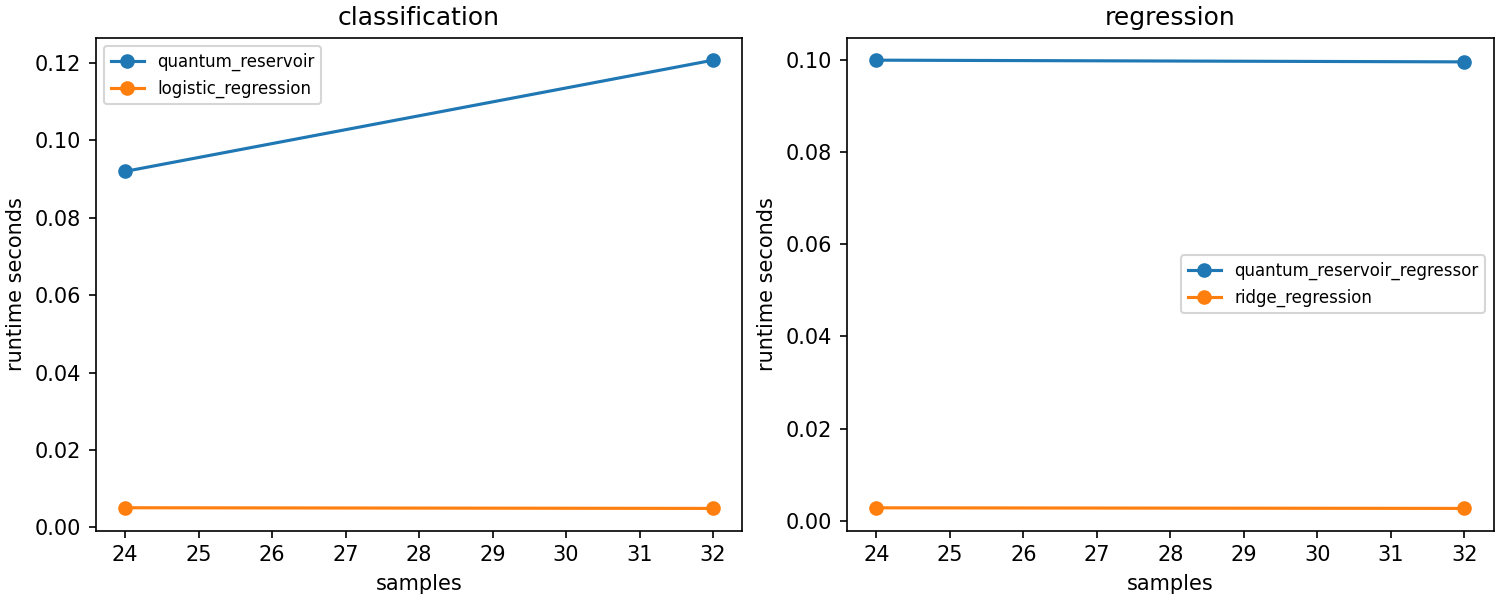

Runtime Scaling Benchmark¶
Notebook: notebooks/benchmarks/08-runtime-scaling-benchmark.ipynb
Result block 1:
Classification runtime scaling
+---------------------+-------------+----------+---------------------+----------------------+
| model | sample_size | shots | primary_metric_mean | runtime_seconds_mean |
+---------------------+-------------+----------+---------------------+----------------------+
| quantum_reservoir | 24 | analytic | 0.3333 | 0.09198 |
| logistic_regression | 24 | analytic | 0.8333 | 0.005064 |
| quantum_reservoir | 32 | analytic | 0.5 | 0.1207 |
| logistic_regression | 32 | analytic | 0.75 | 0.004889 |
+---------------------+-------------+----------+---------------------+----------------------+
Result block 2:
Regression runtime scaling
+-----------------------------+-------------+----------+---------------------+----------------------+
| model | sample_size | shots | primary_metric_mean | runtime_seconds_mean |
+-----------------------------+-------------+----------+---------------------+----------------------+
| quantum_reservoir_regressor | 24 | analytic | 0.9823 | 0.09987 |
| ridge_regression | 24 | analytic | 0.6593 | 0.002816 |
| quantum_reservoir_regressor | 32 | analytic | 1.003 | 0.0995 |
| ridge_regression | 32 | analytic | 0.6347 | 0.002685 |
+-----------------------------+-------------+----------+---------------------+----------------------+
Result block 3:
<IPython.core.display.Image object>
Result block 4:
Validation
+-----------------------+-------------------------------------------------+
| Metric | Value |
+-----------------------+-------------------------------------------------+
| classification_rows | 4 |
| regression_rows | 4 |
| classification_models | [quantum_reservoir, logistic_regression] |
| regression_models | [quantum_reservoir_regressor, ridge_regression] |
| passed | True |
+-----------------------+-------------------------------------------------+
Reproduce¶
Regenerate notebook result pages from committed notebook outputs:
python docs/pages/generate_results.py --skip-api-results
